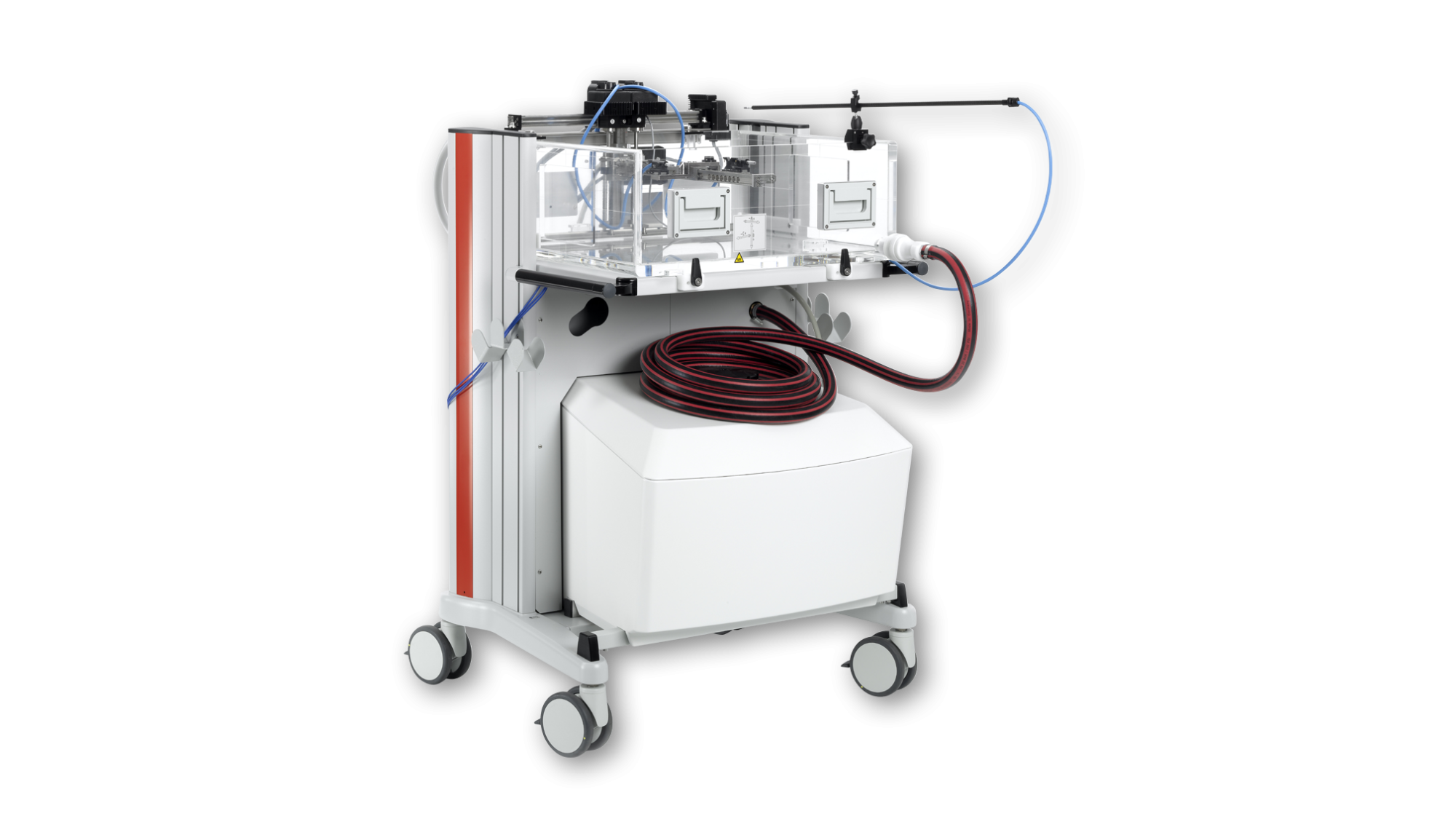

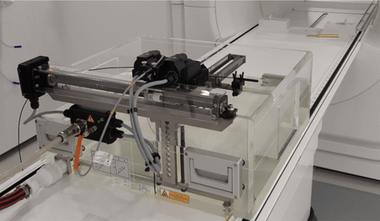

BEAMSCAN MR
The First 3D Water Phantom for MR Linac Commissioning and QA
- Dedicated 3D water phantom for use with MR-linacs ( MR-conditional ≤ 1.5 T, 7 T/m)

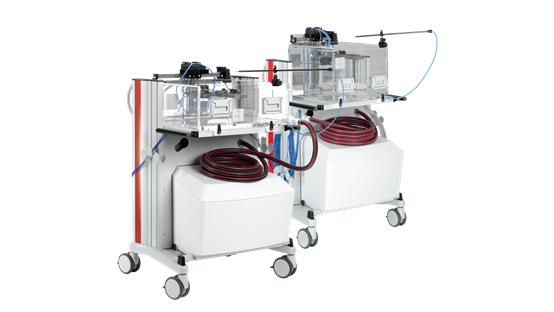

- Two models with vendor-specific water tanks for optimized scanning ranges (max., depending on detector):
568 mm x 145 mm x 355 mm for Elekta Unity,
408 mm x 248 mm x 355 mm for ViewRay® MRIdian® - All-in-one, ready-to-use system with comfortable touch panel for fast setup
- Auto alignment – no lasers or light field needed
- Maximum speed of 30 mm/s for faster scanning
- Reference-class Semiflex 3D ionization chambers for precise dose measurements in small and standard fields up to 40 cm x 40 cm
- Quick axial and radial detector setup with patented TRUFIX®
- Consistent detector orientation for all scans, including off-axis scans
- Fast, sensitive electrometers with excellent signal-to-noise ratio for perfect scans in all field sizes
- Straightforward operation – from setup to documentation
- Fully integrated with Track-it for automated reporting
High-speed precision scans
Our system optimizes linac time by automating beam data acquisition through ready-to-use task lists. Additionally, you can create custom task lists to streamline repetitive tasks, such as monthly or annual quality assurance (QA) processes.
Key measurement tools at a glance
- Online data analysis: Immediate feedback on scan quality
- Scan time predictor: Effectively manage your measurement schedule

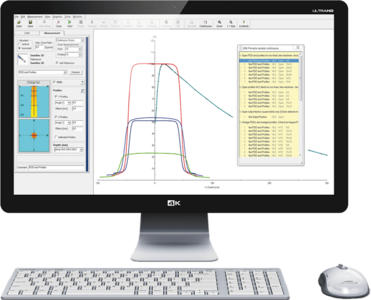

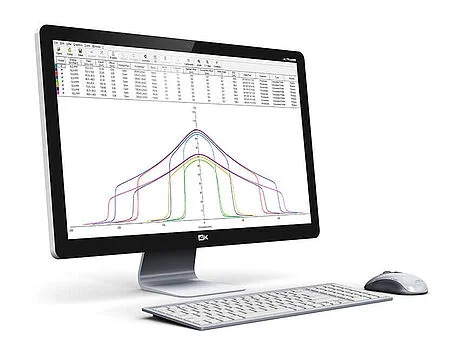

BEAMSCAN software simplifies beam data analysis with just a few clicks
Efficiency and accuracy – BEAMSCAN has you covered!
Key analysis tools at a glance
- 1D gamma scan comparison: Quickly compare multiple scans against reference scans using a “traffic light” results summary
- Automated beam data analysis: Based on international, vendor-specific, or user-defined dosimetry protocols
- Automatic FFF beam profile evaluation: Assess profiles efficiently
- TPR/TMR calculations: Derived from depth dose measurements
Optimize scans for analysis
Using BEAMSCAN, you have several mathematical functions and filters at your disposal
Key processing tools at a glance
- Smoothing data: Apply techniques to reduce noise and enhance clarity in your scan results
- Shifting profiles or PDDs: Adjust the position of profiles or percentage depth dose (PDD) curves for better alignment
- Normalizing profiles and PDDs: Scale your data to a common reference point, ensuring consistent comparisons
- Mirroring profiles: Create mirrored versions of profiles for symmetry analysis
Track, trend and report with Track-it
Seamlessly export your analyzed beam data to Track-it. When combined with BEAMSCAN software, this user-friendly QA data management platform streamlines your workflow from scanning to reporting, ensuring regulatory compliance.
Key reporting tools at a glance
- Browser-based access: Enjoy quick access to all your QA data from anywhere within your network using a web browser
- Automated monitoring: Track and manage QA tasks effortlessly—all consolidated on a single platform
- Customizable protocol templates: Utilize predefined templates or tailor them to your needs. For instance, templates for AAPM TG-142, DIN 6847-5/-6, and 6875-4 are readily available
- Flexible report generation: Generate QA reports online or offline, even in vaults without a wireless network
- Trend analysis: Gain insights over time and across multiple measurement or treatment devices
